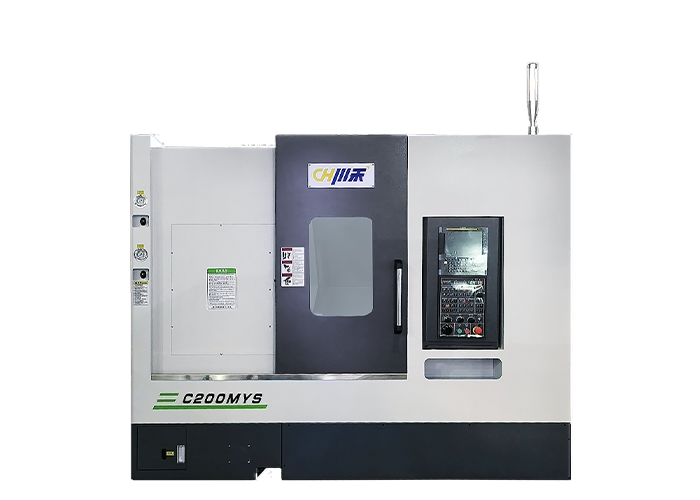

C200MYS
Double spindle single turret turning and milling compound machine tool

It adopts the layout of double spindle and single turret.

Get plan
Double spindle single turret turning and milling compound machine tool

Product features

  • 01
    Horizontal turret tailstock turning and milling compound machine tool, the overall 30° high and low rail inclined machine bed is structurally analyzed at the design point to minimize the impact caused by heavy cutting or high-speed movements, and carefully analyze the size of the force, the position of the force and its deformation quantity to ensure sufficient rigidity.
  • 02
    Made of high-grade Meehanite cast iron, the internal stress is removed through artificial aging (heat treatment) and natural aging, providing the best rigidity, stability and accuracy retention.
  • 03
    Equipped with a high-precision rear-drive electric spindle, the shaft has high radial rigidity, stable thermal temperature rise of the spindle, small thermal deformation, and high dynamic rotation accuracy.
  • 04
    The Y-axis is equipped with a 12-station BMT55 servo power turret and a precision hydraulic tailstock, which can automatically complete internal and external cylindrical surfaces, internal and external threads, conical surfaces, arc surfaces, end faces, grooving, chamfering, etc. for long and short shaft and disc parts. In the turning process, drilling, tapping, surface milling, four-axis linkage milling and other processes are completed for the end face and outer circle of the workpiece.
Double spindle single turret turning and milling compound machine tool

雙主軸車銑復(fù)合

Specifications

Spindle

Sub-spindle

Power Turret

X&Y&Z axis

Other

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio

1:1

Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)
Spindle through apertureΦ56mm
Spindle bearing diameter7016/P4
Hydraulic cylinder bore6'
Spindle noseA 2-5
Spindle motor power17.5kW(220V)
Spindle transmission modeDirect motor
Spindle transmission ratio

1:1

Spindle speed5500rpm(220V)
Spindle rated output speed2700rpm(220V)
Turret modelBMT55-12T
Powered turret capacity (front and back knives)12
Power turret motor power7.5/5.5/3kW（FANUC）
Powered turret motor torque40/24/16Nm（FANUC）
Drive motor (tool change)Huichuan
Tool changing speed (adjacent knife/opposite edge knife)0.4s/1s
Square tool

25mm

Round cutterΦ40mm
Powered Turret Tool SpecificationsER32(3~22mm)
Power tool holder speed4000rpm
X/Y/Z axis maximum travel

250/100/550 mm

X/Y/Z axis rapid feed24/8/24m/min
X/Y/Z axis slide rail form35mm/Hard rail/45mm Rollers
X/Y/Z axis servo motor rated torque1.8kW
X/Y/Z axis ball screw diameter/pitch

Φ32mm/Pitch10(X、Z2）

Φ40mm/Pitch10（Z1、Y）

X/Y/Z axis repeat positioning accuracy0.005mm
Standard controllerFAUNC OI-TFCoolant motor power0.55kW
Voltage/power requirements380V/30kVAMachine weight4500kg
Hydraulic tank capacity60LAppearance size (L× W× H)

2650×1600×1900mm
