Gang tool lathe

Turret lathe

Turn-mill compound machine tool

Dual spindle turn-mill compound

Precision surface grinder

Model

P120

P160

P200

Processing range

Maximum spin diameter on the saddleΦ320mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ120mm
Rotation diameter on carriageΦ126mm
Maximum turning length300mm
Chuck size5'
Bar capacityΦ36mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length340mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length320mm
Chuck size8'
Bar capacityΦ52mm

Products

Model

C160

C200

C250

C300

Specification

C160-300

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ42mm

Specification

C200-300

C200-500

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size8'
Bar capacityΦ52mm

Specification

C250-500

C250-1000

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ250mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size5'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ580mm
Maximum turning diameterΦ500mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ1000mm
Maximum turning length500mm
Chuck size10'
Bar capacityΦ72mm

Specification

C300-1000

C300-1500

C300-2000

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1000mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1500mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ640mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length2240mm
Chuck size12'
Bar capacityΦ75mm

Specification

Model

P160Y

P160MY

C160M

C160MY

C200M

C200MY

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ480mm
Maximum turning diameterΦ200mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ250mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ225mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length240mm
Chuck size6'
Bar capacityΦ42mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ330mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length450mm
Chuck size8'
Bar capacityΦ52mm

Model

C200MYS

CX200

Double spindle single turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1：1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Double spindle double turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1:1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Products

Series

Saddle surface grinder

Movable column surface grinder

CNC surface grinder

Model

G818A

G818S

G2550A

G2550S

G306K

G306S

G408K

G408S

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement250mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement240mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

G306S Saddle type full cover surface grinder

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Model

G5010S

G5012S

G6015S

G6030S

G7020S

Processing range

Table working area1000X500mm
Maximum left and right movement1140mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1200X500mm
Maximum left and right movement1340mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1500×600mm
Maximum left and right movement1600mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench800kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Processing range

Table working area3000×600mm
Maximum left and right movement3250mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

G7020S Moving column full cover surface grinder

Processing range

Table working area2000×700mm
Maximum left and right movement2230mm
Maximum forward and backward movement760mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Model

G306NC

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center540mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

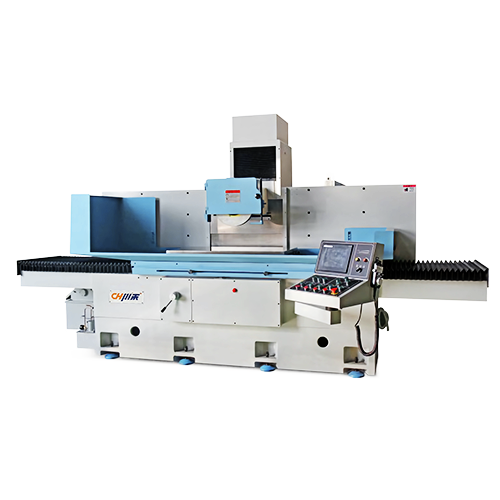

G5012S Movable column surface grinder

Depending on the material and shape of the workpiece, different clamping and positioning methods can be used.

The wide casting structure gives the machine tool excellent rigidity and surface roughness.

Get plan

相關(guān)標(biāo)簽：平面磨床,精密平面磨床,數(shù)控磨床

Product Features

01
This machine tool mainly uses the grinding wheel to grind various materials such as steel, cast iron and non-ferrous metals. Depending on the material and shape of the workpiece, different clamping and positioning methods can be used. Generally flat surfaces can be ground using electromagnetic chucks or directly fastened to the workbench; flat surfaces, right-angled surfaces, arbitrary angles, cylindrical end surfaces, etc. can be ground on fixtures (custom-made fixtures).
02
This surface grinder adopts a structure in which the spindle grinding head body is fixed on the column and moves up and down (Y direction), the column moves forward and backward (Z direction) along the main base, and the workbench moves left and right (X direction) on the main base.
03
The machine's columns, main machine, and workbench are all made of high-grade cast iron, and are optimized and designed using three-dimensional computer software. The preparation of the internal reinforcement ribs of the machine tool has been simulated and analyzed to improve the strength of the machine tool and prevent deformation.
04
The X-axis uses an independent hydraulic station and hydraulic cylinder to push the workbench back and forth on the main base to achieve smooth and smooth X-axis movement. When the external hydraulic station is working, the temperature rise of the oil temperature is reduced and will not cause deformation of the main engine.
05
The Y-axis uses a Mitsubishi servo motor to drive the grinding-grade precision ball screw to move the grinding head up and down to realize the grinding head feeding.

Specifications

Processing range

Forward and backward feeding

Upper and lower structure

Grinding wheel

Motor

Other

Table working area	1200X500mm
Maximum left and right movement	1340mm
Maximum forward and backward movement	540mm
Maximum distance from work surface to spindle center	600mm
Maximum weight of the workbench	800kg
Workbench T-slot	14mm×3N
Workbench speed	2～25m/min

Front and rear hand wheel feed (1 grid)	0.02mm
Feed rate of front and rear handwheels	×1，×10
Front and rear automatic feed position	Both ends or one side
Automatic feed amount before and after	0.2-20mm
Fast forward and backward movement (50HZ)	1250mm/min

Digital Display	0.001mm
Fast lifting speed	750mm/min
Manual feed servo motor method	×10~~×1
Minimum feed	0.001mm
Canned cycle	Rapid feed → rough grinding → fine grinding and return Coarse→fine→return

Grinding wheel size	Φ350mm×40×Φ127mm(OptionalΦ400mm×40×Φ127mm）
Spindle speed	1450rpm

Spindle motor	7.5kW
Up and down drive servo motor	1kW
Hydraulic motor	2.2kW
Flush motor	0.2kW
Front and rear drive motors	0.2kW

Appearance size (L× W× H)	5400×3250×2300mm
Gross weight	6200kg

Component Description

Three-axis guide rail	The X-axis adopts a double V design, which is suitable for heavy-duty and form grinding of larger machines. The slide rail surface of the worktable is coated with Teflon (Turcite-B) to reduce the damping coefficient and ensure smooth operation of the worktable. It is made with exquisite craftsmanship. Scraping processing, combined with automatic lubrication system forced lubrication, ensures accuracy and durability, and increases the service life of the machine. The Z-axis slide rail adopts a double V-type design, is coated with Turcit-B, and is precision scraped by hand to ensure smooth movement. The motor drives the precision ball screw through a synchronous belt, driving the column to make precise forward and backward feeds on the main frame. The Y-axis slide rail adopts precision sliding guide rail to ensure smooth up and down operation of the spindle and good accuracy. The precision-grade ball screw is driven by a Mitsubishi servo motor, which has high rigidity and sensitive response. The minimum feed accuracy can reach 0.001mm. Y-axis MPG feed replaces the traditional handwheel feed, improving the accuracy and convenience of up and down feed, and making the operation more flexible.
Spindle group	The spindle is the heart of the machine tool. The spindle is selected from a famous Taiwanese brand. The spindle manufacturer uses high-quality and high-precision selected special materials. It undergoes strict heat treatment processes and precision machining to ensure that the spindle can obtain high-quality materials. The large outer diameter cartridge spindle, combined with the wide spindle seat, stable column and high-power spindle motor, has high cutting power and high accuracy maintenance. The spindle is filled with special grease and adopts a unique The labyrinth seal protection design enables the spindle to be used for a long time without maintenance.
Automatic grinding settings	Automatic grinding can be set to rough grinding, fine grinding, and smooth grinding. The amount of feed, the number of feeds, and the number of smooth grinding can be directly input for various grinding methods. Multiple grinding modes can be set, the last grinding cycle can be stored, and Z-shaped grinding can be performed to improve efficiency.
Control system	The Japanese Mitsubishi PLC control system is stable and reliable, and has fewer control lines than traditional lines, fewer faults, and is easy to maintain, modify and monitor. LCD touch screen panel settings: LCD touch screen, soft key panel, each grinding condition setting is clear at a glance, simple and easy to operate. Its parameters are stored in Flash RAM to prevent data loss during power outages.
LCD touch screen panel settings	LCD touch screen, soft key panel, various grinding condition settings are clear at a glance, the touch screen is equipped with various grinding methods, and the operation is simple and convenient. It is easy to learn and understand, and does not require professional training. Its parameters are stored in flash memory (Flash RAM), so there is no problem of data loss due to power outage. The front and rear feed can be set through the buttons on the control panel, and the tool can be set by inching left and right.
lubricating	It adopts a forced circulation lubrication device and installs a lubricating oil cooler. The constant oil temperature improves accuracy. It can automatically and completely lubricate the entire machine and recycle it, saving unnecessary expenses on lubricating oil.
Remove dandruff	The standard magnetic separator allows customers to reduce the time of changing cutting fluid and improve the grinding surface quality.
Machine tool protection	The standard ship-shaped splash guard and large rear wall panel prevent the cutting fluid in the workbench from splashing outside the workbench.
Use environmental conditions	Relative humidity: 35～90%R/H (no condensation) Ambient temperature: 0℃_x005f∽40℃ Air medium: non-corrosive medium Light: Sufficient and well ventilated The machine tool should operate stably for a long time under the above working environment.
Operation and maintenance space	The size of the G5012S machine is 5400mm in length, 3250mm in width and 2300mm in height. For safety reasons and convenience in operation and maintenance, the space must be larger than the size of the machine. It is recommended to leave 0.5 meters of space on the left, right and back.

首頁

經(jīng)營范圍

電話咨詢

留言

国产人与动人物a级毛片_老司机老色鬼精品免费视频_国产白嫩视频在线_亚洲欧美另类激情_欧美综合亚洲综合_97亚洲综合另类小说图片_在线播放午夜福利_老湿机一区二区三区_香蕉黄色毛片视频网_成人激情影院在线观看

G5012S Movable column surface grinder

Product Features

Specifications

Component Description
