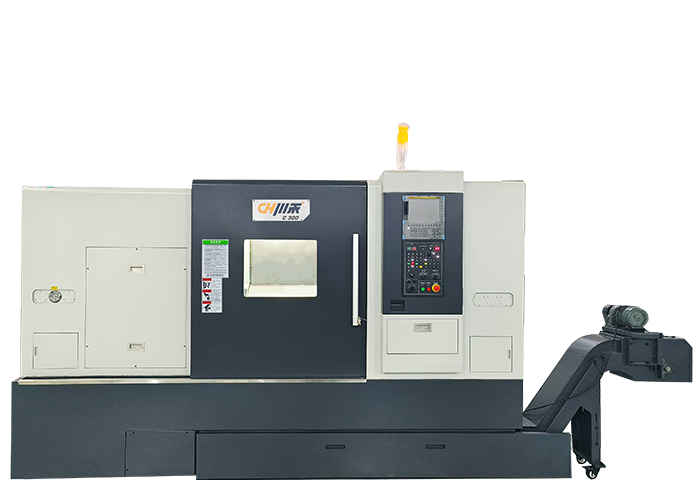

C300-2000Turret CNC lathe

The use of hard rails can withstand greater loads and is suitable for roughing machine tools with large cutting capacity and large feeds.

Get plan
C300-2000Turret CNC lathe

Product Features

  • 01
    The main structure of the fuselage is a fully enclosed new design, made of high-quality Meehanite cast iron fuselage and fully supported ribs. The specially developed ribbed castings on the inner surface of the fuselage have extremely high torsion resistance and strong shock resistance. In addition, the wide internal space allows the operator to easily change tools and workpieces. Combined with the high-rigidity structure, it creates an automated machine that occupies a small space but is high-precision and multi-functional.
  • 02
    The use of hard rails can withstand greater loads and is suitable for roughing machine tools with large cutting capacity and large feeds. Because the contact area of the guide rail is large, the machine tool runs more smoothly, which is suitable for machine tools that require high machine tool vibration.
  • 03
    Equipped with Japanese NSK NN series P4 bearings, the shaft has high radial rigidity, stable thermal temperature rise of the spindle, small thermal deformation, and high dynamic rotation accuracy.
  • 04
    The standard German SCHOTT 125-12T servo turret and precision hydraulic tailstock can automatically complete internal and external cylindrical surfaces, internal and external threads, conical surfaces, arc surfaces, end faces, grooving, chamfering, etc. on long and short shaft and disc parts. process.
C300-2000Turret CNC lathe


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ640mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length2240mm
Chuck size12’
Bar capacity

Φ75mm

Spindle noseA 2-8
Spindle bearing modelNN structure series bearings
Spindle through apertureΦ87mm
Spindle transmission modeBelt drive
Spindle transmission ratio1:2
Spindle maximum speed2500rpm
Spindle rated torque230Nm
X/Z axis maximum travel300+30/2285mm
X/Z axis rapid feed20/25 m/min
X/Z axis slide rail formHard rail
X/Z axis ball screw diameter/pitchΦ40*Pitch08/50mm*Pitch10
X/Z axis positioning accuracy0.01/1000mm
X/Z axis repeat positioning accuracy≤0.008mm
Spindle motor18.5kW
X-axis servo motor rated torque20Nm
Z-axis servo motor rated torque27Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret model125-12T
Tool changing speed (adjacent knife/opposite edge knife)0.37s/0.95s
Round cutterΦ50mm
Square tool≤32mm
Mandrel inner tapered holeMT#5/100mm/80mm
Spindle control methodHydraulic programmable
Tailstock body travel2285mm
Tailstock body movement methodMechanical
Standard controllerFAUNC OI-TFVoltage/power requirements380V/40kVA
Water tank capacity300LMachine weight6500kg
Hydraulic tank capacity60LAppearance size (L× W× H)4155×1910×1980mm

Dimensions
