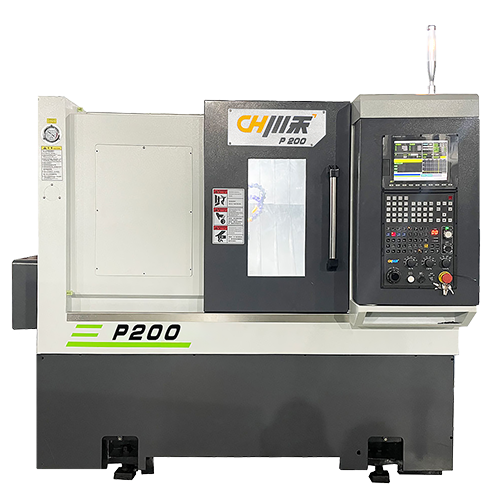

P200 Gang tool lathe

Knife row design, the knife row holder arranges the tools in a straight line, and the tool change is fast and accurate.

Save processing time and reduce maintenance costs.

Get plan

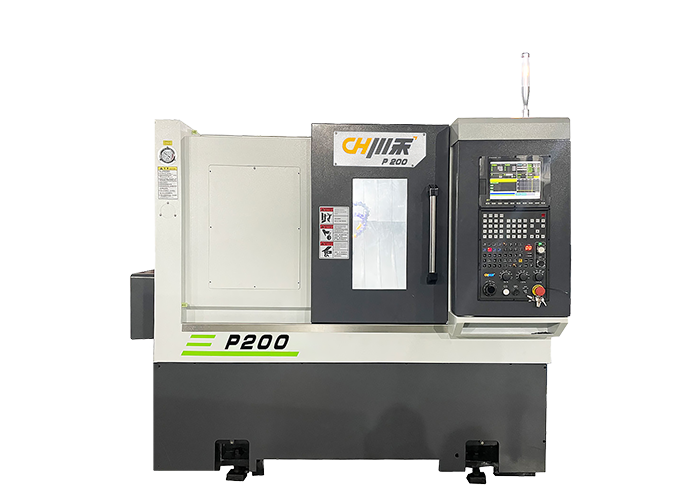

P200 Gang tool lathe

Product Features

  • 01
    This machine is a horizontal CNC lathe with an integrated casting design for the base and bed. The bed rail surface is tilted at 45 degrees. It has a large load-bearing cross-section to ensure high-precision cutting. Structural features of high rigidity, low center of gravity, and close proximity to the spindle
  • 02
    Knife row design, the knife row holder is arranged in a straight line, and the tool change is fast and accurate, saving processing time and reducing maintenance costs.
  • 03
    High-precision unit spindle, high shaft radial rigidity, stable spindle thermal temperature rise, small thermal deformation, and high dynamic rotation accuracy
  • 04
    It can complete the cutting of internal and external cylindrical surfaces, conical surfaces, arc surfaces, end faces, grooving, internal and external threads, chamfering and other processes for various parts.
  • 05
    Optional bar feeder & truss manipulator & joint manipulator realize "unmanned" automatic production
P200 Gang tool lathe


Specifications

Processing range

Spindle

X&Z axis

Motor Power

Other

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length320mm
Chuck size8'
Rod capacity

Φ52mm

Spindle noseA 2-6
Spindle bearing modelNN3020+100BAR+NN3018
Spindle through apertureΦ66mm
Spindle transmission modeBelt drive
Spindle transmission ratio1:1
Spindle maximum speed4200rpm
Spindle rated torque65Nm
X/Z axis maximum travel460/340mm
X/Z axis rapid feed30m/min
X/Z axis slide rail form35mm linear rail
X/Z axis ball screw diameter/pitchΦ32mm/Pitch10
X/Z axis positioning accuracy0.008mm/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor power11kW
X-axis servo motor rated torque8Nm
Z-axis servo motor rated torque8Nm
Hydraulic station motor0.75kW
Pump motor0.55kW
Hot and cold switch300W
Standard controllerSYNTEC 22TATool magazine5 rows of tool holders
Voltage/power requirements380V/19kVASquare tool≤25mm
Hydraulic tank capacity30LRound cutterΦ32mm
Machine weight2800kgAppearance size (L× W× H)2200×1600×1700mm

Dimensions
