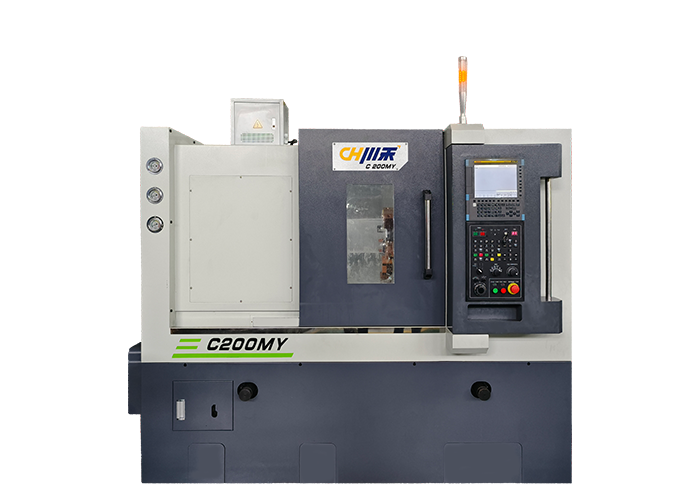

C200MYTurn-mill compound machine tool

The spindle has stable thermal temperature rise, small thermal deformation and high dynamic rotation accuracy.

Get plan
C200MYTurn-mill compound machine tool

Product Features

  • 01
    This series of horizontal turret tailstock turning and milling composite machine tool, the overall 30° high and low rail inclined bed in the design of the structure analysis, inhibit heavy cutting or high-speed action caused by the minimum, detailed analysis of the size of the force, the position of the force and its deformation, to ensure sufficient rigidity.
  • 02
    The use of high-grade Mihanna cast iron, artificial aging (heat treatment) and natural aging methods to remove internal stresses provides optimal rigidity. Stability and accuracy retention.
  • 03
    Loaded with high-precision post-drive electric spindle, the radial rigidity of the shaft is high, the thermal temperature rise of the spindle is stable, the thermal deformation is small, and the dynamic rotation accuracy is high.
  • 04
    Y-axis equipped with 12-station BMT55 servo-powered turret, precision hydraulic tailstock, can automatically complete internal and external cylindrical surface, internal and external threads, conical surface, arc surface, end face, grooving, chamfering and other turning processes for long and short shaft and disc parts, and complete drilling, tapping, milling surface and four-axis linkage milling and other processes for workpiece end faces and outer circles.

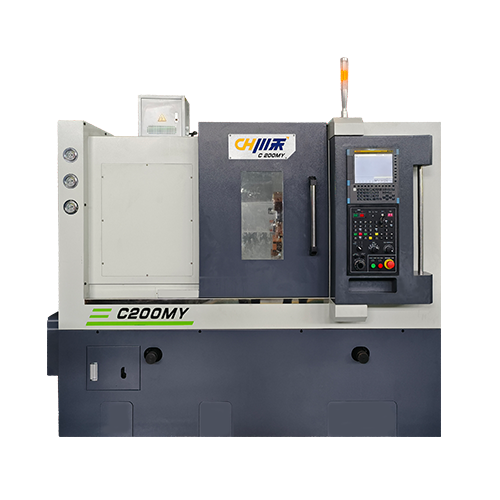

C200MYTurn-mill compound machine tool


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ330mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length450mm
Chuck size8'
Bar capacity

Φ52mm

Spindle noseA 2-6
Spindle bearing modelSynchronous servo electric spindle
Spindle through apertureΦ66mm
Minimum spindle positioning accuracy (C-axis)0.001° Spindle motor + magnetic ring + disc brake
Dynamic accuracy (C-axis)±0.02° Spindle motor + magnetic ring + disc brake
Spindle rated torque103Nm
Spindle maximum speed4200rpm
X/Z axis maximum travel200/100/550mm
X/Z axis rapid feed24/8/24m/min
X/Z axis slide rail form35mm/Hard rail/45mm Rollers
X/Z axis positioning accuracy0.008mm/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor15kW
X/Z axis servo motor rated torque11Nm/Y軸10.5Nm
Power motor20Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret modelBMT55-12T
Tool changing speed (adjacent knife/opposite edge knife)0.57s/ 0.95s
Round cutterΦ40mm
Square tool≤25mm
Power head (turret) tool specificationsER32（3～22mm)
Maximum speed of the driven toolholder4000rpm
Mandrel inner tapered holeMT#4
Mandrel diameterΦ80mm(Sleeve type）
Mandrel travel100mm
Spindle control methodHydraulic programmable
Tailstock body travel400mm
Tailstock body movement methodMechanical
Standard controllerFANUC 01-TFVoltage/power requirements380V/30kVA
Water tank capacity300LMachine weight4500kg
Hydraulic tank capacity60LAppearance size (L× W× H)

2650×1600×1900mm

Dimensions
