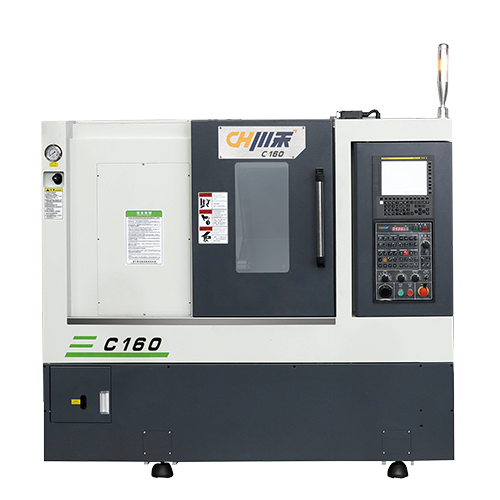

C160Turret CNC lathe

Made of high-grade Meehanite cast iron, internal stress is removed through artificial aging (heat treatment) and natural aging, providing better rigidity, stability and accuracy retention.

Get plan
C160Turret CNC lathe

Product Features

  • 01
    This series of horizontal turret tailstock CNC lathe, the overall 30° inclined bed body in the design of the structure analysis, inhibit heavy cutting or high-speed action caused by the minimum, detailed analysis of the size of the force, the position of the force and its deformation, to ensure sufficient rigidity.
  • 02
    The use of high-grade Mihanna cast iron, through artificial aging (heat treatment) and natural aging to remove internal stress, provides better rigidity. Stability and accuracy retention.
  • 03
    Loaded with high-precision unit spindle, high radial rigidity of shaft, stable thermal temperature rise of spindle, small thermal deformation, high dynamic rotation accuracy.
  • 04
    Equipped with German Xiaote 8/12 station servo turret, precision hydraulic tailstock, can automatically complete the internal and external cylindrical surface, internal and external threads, conical surface, arc surface, end face, grooving, chamfering and other processes for long and short shaft and disc parts.
C160Turret CNC lathe


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacity

Φ42mm

Spindle noseA 2-5
Spindle bearing modelNSK7016A5
Spindle through apertureΦ56mm
Spindle transmission modeBelt drive
Spindle transmission ratio1:1
Spindle maximum speed6000rpm
Spindle rated torque63Nm
X/Z axis maximum travel175+10/320 mm
X/Z axis rapid feed30m/min
X/Z axis slide rail form30mm 線軌
X/Z axis ball screw diameter/pitchΦ32mm/Pitch10
X/Z axis positioning accuracy0.008mm/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor11kW
X-axis servo motor rated torque8.34Nm
Z-axis servo motor rated torque8.34Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret model80-8T
Tool changing speed (adjacent knife/opposite edge knife)0.27s/0.57s
Round cutterΦ32mm
Square tool≤25mm
Mandrel inner tapered holeMT#4
Spindle control methodHydraulic programmable
Tailstock body travel200mm
Tailstock body movement methodMechanical
Standard controllerFANUC OI-TF
Voltage/power requirements380V/20kVA
Water tank capacity300LMachine weight3000kg
Hydraulic tank capacity60LAppearance size (L× W× H)2200×1600×1700mm

Dimensions
