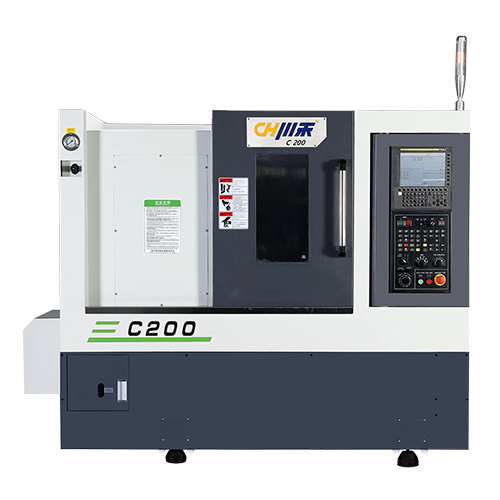

C200-300Turret CNC lathe

The shaft has high radial rigidity, stable thermal temperature rise of the spindle, small thermal deformation, and high dynamic rotation accuracy.

Get plan

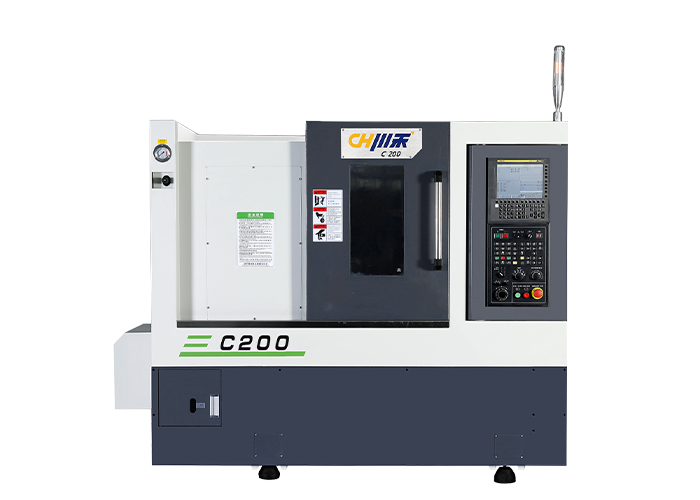

C200-300Turret CNC lathe

Product Features

  • 01
    This series of horizontal turret tailstock CNC lathes have an overall 30° slanted bed. Structural analysis is carried out at the design point to minimize the effects of heavy cutting or high-speed movements. The size of the force, the action position of the force and the amount of deformation are carefully analyzed. Ensuring sufficient rigidity.
  • 02
    Made of high-grade Meehanite cast iron, internal stress is removed through artificial aging (heat treatment) and natural aging, providing better rigidity, stability and accuracy retention.
  • 03
    Equipped with a high-precision unit spindle and double-row roller-type heavy-cut bearings, the shaft has high radial rigidity, stable thermal temperature rise of the spindle, small thermal deformation, and high dynamic rotation accuracy.
  • 04
    The standard German Xiaote 8-station servo turret and precision hydraulic tailstock can automatically complete internal and external cylindrical surfaces, internal and external threads, conical surfaces, arc surfaces, end faces, grooving, chamfering, etc. on long and short shaft and disc parts. process.
C200-300Turret CNC lathe


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacity

Φ52mm

Spindle noseA 2-6
Spindle bearing modelNN3020+100BAR+NN3018
Spindle through apertureΦ66mm
Spindle transmission modeBelt drive
Spindle transmission ratio1:1
Spindle maximum speed4200rpm
Spindle rated torque65Nm
X/Z axis maximum travel175+10/320mm
X/Z axis rapid feed30m/min
X/Z axis slide rail form30mm linear rail
X/Z axis ball screw diameter/pitchΦ32mm/Pitch10
X/Z axis positioning accuracy0.008mm/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor11kW
X-axis servo motor rated torque8.34Nm
Z-axis servo motor rated torque8.34Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret model80-8T
Tool changing speed (adjacent knife/opposite edge knife)0.27s/0.57s
Round cutterΦ32mm
Square tool≤25mm
Mandrel inner tapered holeMT#4
Spindle control methodHydraulic programmable
Tailstock body travel200mm
Tailstock body movement methodMechanical
Standard controllerFAUNC OI-TFVoltage/power requirements380V/20kVA
Water tank capacity300LMachine weight3100kg
Hydraulic tank capacity60LAppearance size (L× W× H)2200×1600×1700mm

Dimensions
