Gang tool lathe

Turret lathe

Turn-mill compound machine tool

Dual spindle turn-mill compound

Precision surface grinder

Model

P120

P160

P200

Processing range

Maximum spin diameter on the saddleΦ320mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ120mm
Rotation diameter on carriageΦ126mm
Maximum turning length300mm
Chuck size5'
Bar capacityΦ36mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length340mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ300mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ126mm
Maximum turning length320mm
Chuck size8'
Bar capacityΦ52mm

Products

Model

C160

C200

C250

C300

Specification

C160-300

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ42mm

Specification

C200-300

C200-500

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size8'
Bar capacityΦ52mm

Specification

C250-500

C250-1000

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ400mm
Standard turning diameterΦ250mm
Rotation diameter on carriageΦ300mm
Maximum turning length488mm
Chuck size5'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ580mm
Maximum turning diameterΦ500mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ1000mm
Maximum turning length500mm
Chuck size10'
Bar capacityΦ72mm

Specification

C300-1000

C300-1500

C300-2000

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1000mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ620mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length1500mm
Chuck size12'
Bar capacityΦ75mm

Processing range

Maximum spin diameter on the saddleΦ730mm
Maximum turning diameterΦ640mm
Standard turning diameterΦ300mm
Rotation diameter on carriageΦ440mm
Maximum turning length2240mm
Chuck size12'
Bar capacityΦ75mm

Specification

Model

P160Y

P160MY

C160M

C160MY

C200M

C200MY

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ480mm
Maximum turning diameterΦ200mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ250mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ46mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size6'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ225mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ300mm
Maximum turning length240mm
Chuck size6'
Bar capacityΦ42mm

Processing range

Maximum spin diameter on the saddleΦ400mm
Maximum turning diameterΦ320mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length300mm
Chuck size8'
Bar capacityΦ52mm

Processing range

Maximum spin diameter on the saddleΦ560mm
Maximum turning diameterΦ330mm
Standard turning diameterΦ200mm
Rotation diameter on carriageΦ300mm
Maximum turning length450mm
Chuck size8'
Bar capacityΦ52mm

Model

C200MYS

CX200

Double spindle single turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1：1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Double spindle double turret turning and milling compound machine tool

Processing range

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio1:1
Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)

Products

Series

Saddle surface grinder

Movable column surface grinder

CNC surface grinder

Model

G818A

G818S

G2550A

G2550S

G306K

G306S

G408K

G408S

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement250mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area460X200mm
Maximum left and right movement540mm
Maximum forward and backward movement240mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench150kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed5～25m/min

Processing range

Table working area500X250mm
Maximum left and right movement560mm
Maximum forward and backward movement275mm
Maximum distance from work surface to spindle center475mm
Maximum weight of the workbench250kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

G306S Saddle type full cover surface grinder

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center570mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area800×400mm
Maximum left and right movement880mm
Maximum forward and backward movement450mm
Maximum distance from work surface to spindle center580mm
Maximum weight of the workbench700kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Model

G5010S

G5012S

G6015S

G6030S

G7020S

Processing range

Table working area1000X500mm
Maximum left and right movement1140mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1200X500mm
Maximum left and right movement1340mm
Maximum forward and backward movement540mm
Maximum distance from work surface to spindle center600mm
Maximum weight of the workbench800kg
Workbench T-slot14mm×3N
Workbench speed2～25m/min

Processing range

Table working area1500×600mm
Maximum left and right movement1600mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench800kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Processing range

Table working area3000×600mm
Maximum left and right movement3250mm
Maximum forward and backward movement660mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

G7020S Moving column full cover surface grinder

Processing range

Table working area2000×700mm
Maximum left and right movement2230mm
Maximum forward and backward movement760mm
Maximum distance from work surface to spindle center700mm
Maximum weight of the workbench1500kg
Workbench T-slot16mm×3N
Workbench speed2～25m/min

Model

G306NC

Processing range

Table working area600×300mm
Maximum left and right movement680mm
Maximum forward and backward movement340mm
Maximum distance from work surface to spindle center540mm
Maximum weight of the workbench420kg
Workbench T-slot14mm×1N
Workbench speed2～25m/min

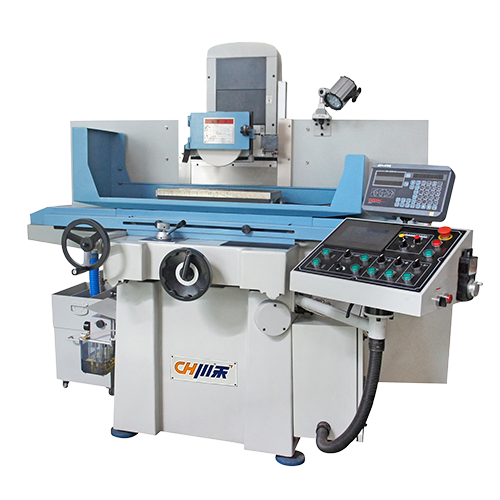

G818S Saddle surface grinder

It adopts the layout of a cross workbench, high-rigidity columns and precision spindles, and has a compact structure.

It has been stress relieved to improve toughness and prevent deformation.

Get plan

相關標簽：平面磨床,精密平面磨,數(shù)控磨床

Product Features

01
This machine tool mainly uses the grinding wheel to grind various materials such as steel, cast iron and non-ferrous metals. Depending on the material and shape of the workpiece, different clamping and positioning methods can be used. Generally flat surfaces can be ground using electromagnetic chucks or directly fastened to the workbench; flat surfaces, right-angled surfaces, arbitrary angles, cylindrical end surfaces, etc. can be ground on fixtures (custom-made fixtures).
02
This surface grinder uses a single column fixed on the base. The spindle grinding head body is fixed on the column to move up and down (Y direction). The sliding frame moves forward and backward (Z direction) along the main machine. The workbench moves left and right (X direction) on the sliding frame. move.
03
The machine's columns, main engine, and machine head are all made of high-grade cast iron. Three-dimensional computer software is used to assist in the optimization design. The preparation of the internal stiffeners of the structure is analyzed and stress-relieved to improve toughness and prevent deformation.
04
The X-axis uses an independent hydraulic station and hydraulic cylinder to push the workbench back and forth on the main base to achieve smooth and smooth X-axis movement.
05
The Y-axis guide rail adopts precision slide rail to ensure the spindle runs smoothly up and down. The precision ground ball screw is driven by a Mitsubishi servo motor, which is sensitive and improves the feed accuracy. The minimum feed unit can reach 0.001mm. The MPG electronic handwheel replaces the traditional handwheel, making the feed operation more convenient.
06
The Z-axis uses an AC motor connected to the screw through a belt to drive the worktable to move forward and backward on the host to achieve smooth Z-axis feed.

Specifications

Processing range

Forward and backward feeding

Upper and lower structure

Grinding wheel

Motor

Other

Table working area	460X200mm
Maximum left and right movement	540mm
Maximum forward and backward movement	240mm
Maximum distance from work surface to spindle center	475mm
Maximum weight of the workbench	150kg
Workbench T-slot	14mm×1
Workbench speed	2～25m/min

Front and rear hand wheel feed (1 grid)	0.02mm
Automatic feeding forward and backward	0.2～12mm
Fast forward and backward movement (50HZ)	800mm/min

Up and down rapid movement amount	0-330mm/min可設定
Up and down manual feed (1 grid)	0.001/0.01mm
Up and down automatic feed amount	0-0.1mm

Grinding wheel size	Φ205mm×6～20×Φ31.75mm
Spindle speed	2850rpm

Spindle motor	2.25kW
Up and down drive servo motor	0.4kW servo
Hydraulic motor	1.5kW
Flush motor	0.09kW
Front and rear drive motors	0.08kW

Appearance size (L× W× H)	1800×1400×1800mm
Gross weight	1500kg

Component Description

Three-axis guide rail	The X-axis and Z-axis guide rails are pasted with American Turcite-B wear-resistant sheets. Its high load and low wear can ensure the minimum movement and the machining accuracy is easy to control. The entire set of Y-axis slide rails is hardened, and the head base is precision ground to have low friction coefficient and shock-absorbing performance. The Z-axis uses an ordinary screw, which has self-locking force, and uses automatic intermittent lubrication of the screw to make the screw move smoothly and achieve the lowest wear of the screw.
Spindle group	The spindle is produced by a professional manufacturer in Taiwan, and is equipped with Japanese original NSK high-precision matched bearings. The accuracy can reach within 0.003mm, and it requires no oiling for life.
Automatic grinding settings	Automatic grinding can be set to rough grinding, fine grinding, and smooth grinding. The touch screen can directly input the amount of feed, the number of feeds and various grinding methods.
Control system	It adopts Japanese Mitsubishi servo motor and Mitsubishi PLC control system, which has fewer faults and is easy to maintain, modify and monitor. Maintenance centers are located around the world.
LCD touch screen panel settings	LCD touch screen, soft key panel, various grinding condition settings are clear at a glance, the touch screen is equipped with various grinding methods, and the operation is simple and convenient. It is easy to learn and understand, and does not require professional training. Its parameters are stored in flash memory (Flash RAM), so there is no problem of data loss due to power outage. The front and rear feed can be set through the buttons on the control panel, and the tool can be set by inching left and right.
lubricating	An automatic non-circulating lubrication system is used to supply oil to each guide rail and screw rod, ensuring that all key parts are properly lubricated at any time.
Remove dandruff	According to the customer's processing requirements, a magnetic separator can be selected to protect the environment and extend the time for changing the cutting fluid.
Machine tool protection	The X-direction is protected by three-proof cloth, and the Z-direction rail is protected by sheet metal. It has a clean appearance, good protection effect, and is sturdy and durable. Standard large splash-proof wall panels prevent cutting fluid from flowing into the guide rails and extend the life of the machine.
Use environmental conditions	Relative humidity: 35～90%R/H (no condensation) Ambient temperature: 0℃_x005f∽40℃ Air medium: non-corrosive medium Light: Sufficient and well ventilated The machine tool should operate stably for a long time under the above working environment.
Operation and maintenance space	The dimensions of the G818S machine are 1800mm in length, 1400mm in width and 1800mm in height. For safety considerations and convenience in operation and maintenance, the space must be at least 500mm larger than the machine dimensions.

首頁

經(jīng)營范圍

電話咨詢

留言

国产人与动人物a级毛片_老司机老色鬼精品免费视频_国产白嫩视频在线_亚洲欧美另类激情_欧美综合亚洲综合_97亚洲综合另类小说图片_在线播放午夜福利_老湿机一区二区三区_香蕉黄色毛片视频网_成人激情影院在线观看

G818S Saddle surface grinder

Product Features

Specifications

Component Description
