CX200

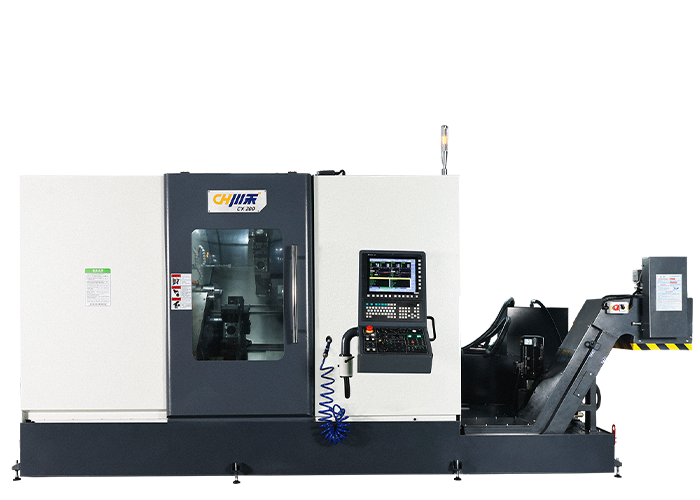

Double spindle double turret turning and milling compound machine tool

Adopting a dual-spindle layout, arranged oppositely,

Two sets of turrets are arranged up and down, and the upper turret has a Y-axis.

Get plan

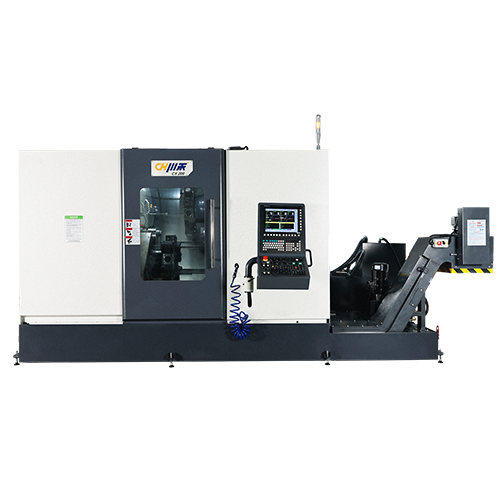

Double spindle double turret turning and milling compound machine tool

Product features

  • 01
    The CX200 dual-spindle dual-turret turning and milling compound machine tool adopts a dual-spindle layout, arranged oppositely, with two sets of turrets arranged up and down, and the upper turret has a Y-axis. The machine tool's unique dual-channel control system can realize dual-spindle, dual-turret and four-axis linkage processing. The sub-spindle continues to clamp the workpiece from the main spindle, and continues processing the clamped end to complete the entire processing process of the workpiece.
  • 02
    It can complete processes such as turning, drilling, milling and even grinding of some complex-shaped precision parts. Two different parts can also be turned and milled simultaneously.
  • 03
    A single turret can hold up to 24 knives, with short tool changing time and low failure rate. A variety of cutting tools can be installed according to the needs of different processing components.
  • 04
    The power tools configured in the machine tool can hold end mills, disc milling cutters, drills and other tools, and can be installed horizontally, vertically, tilted and other installation positions to facilitate the composite processing of parts from various directions.
  • 05
    The unique inclined bed structure of the machine tool facilitates chip discharge and coolant circulation.
  • 06
    The machine tool can be equipped with additional functional components such as automatic feeders and splicing machines to form a flexible processing production line.
Double spindle double turret turning and milling compound machine tool


Specifications

Spindle

Sub-spindle

Power Turret

X&Y&Z axis

Other

Spindle through apertureΦ66mm
Spindle bearing diameterNN3020+100BAR+NN3018
Hydraulic cylinder bore8'
Spindle noseA 2-6
Spindle motor power22kW
Spindle transmission modeDirect drive
Spindle transmission ratio

1:1

Spindle speed4300rpm
Spindle rated output speed2320rpm(220V)
Spindle through apertureΦ56mm
Spindle bearing diameter7016/P4
Hydraulic cylinder bore6'
Spindle noseA 2-5
Spindle motor power17.5kW(220V)
Spindle transmission modeDirect motor
Spindle transmission ratio

1:1

Spindle speed5500rpm(220V)
Spindle rated output speed2700rpm(220V)
Turret modelBMT65
Powered turret capacity (front and back knives)24x2
Power turret motor power7.5/5.5/3kW（FANUC）
Powered turret motor torque40/24/16Nm（FANUC）
Drive motor (tool change)Huichuan
Tool changing speed (adjacent knife/opposite edge knife)0.4s/1s
Square tool

25mm

Round cutterΦ40mm
Powered Turret Tool SpecificationsER32(3~22mm)
Power tool holder speed5000rpm
X/Y/Z axis maximum travel

175 mm

70 mm

515(Z1、Z2)/600(Z3) mm

X/Y/Z axis rapid feed20m/min
X/Y/Z axis slide rail form35/35/45mm linear rail
X/Y/Z axis servo motor rated torque4.5kW
X/Y/Z axis ball screw diameter/pitchΦ40mm/Pitch10
X/Y/Z axis repeat positioning accuracy0.005mm
Standard controllerFAUNC OI-TFCoolant motor power1.5kW
Voltage/power requirements380V/55kVAMachine weight8500kg
Hydraulic tank capacity80LAppearance size (L× W× H)

3050×2250×2200mm

Dimensional
