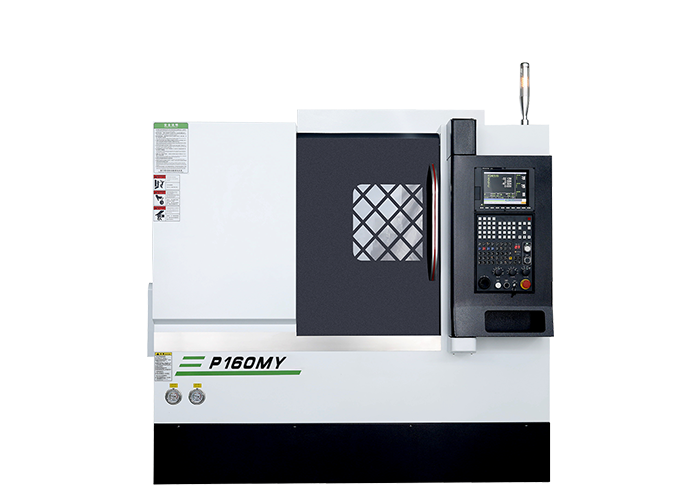

P160MY Turn-mill compound machine tool

Strong processing capacity, high cost performance, suitable for the processing of large quantities of complex parts.

Get plan

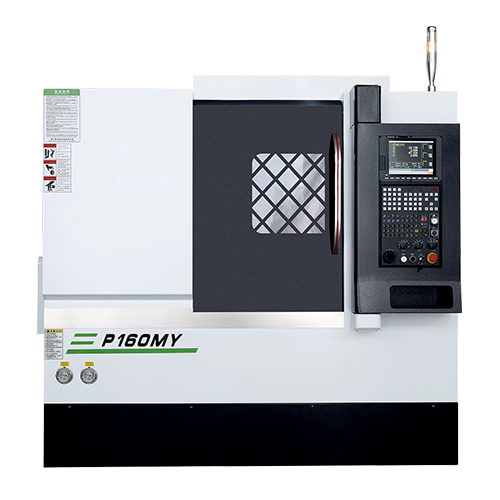

P160MY Turn-mill compound machine tool

Product Features

  • 01
    This series of horizontal turret tailstock turning and milling composite machine tool, the overall 30° inclined bed body in the design of the structural analysis, inhibit heavy cutting or high-speed action caused by the minimum, detailed analysis of the size of the force, the position of the force and its deformation, to ensure sufficient rigidity.
  • 02
    The built-in turret Y-axis matrix four-wire rail structure greatly improves the rigidity and stability of turning/milling.
  • 03
    High-precision servo synchronous electric spindle, high C-axis indexing accuracy, high axial radial rigidity, stable spindle thermal temperature rise, small thermal deformation, high dynamic rotation accuracy.
  • 04
    Optional bar feeder + splicer to achieve high-efficiency and high-precision automatic processing of complex parts. Optional truss automation manipulator realizes automatic processing of small batches and multi-variety workpieces.
P160MY Turn-mill compound machine tool


Specifications

Processing range

Spindle

X&Z axis

Motor power

Dota

Tailstock

Other

Maximum spin diameter on the saddleΦ480mm
Maximum turning diameterΦ200mm
Standard turning diameterΦ150mm
Rotation diameter on carriageΦ250mm
Maximum turning length300mm
Chuck size6'
Bar capacity

Φ46mm

Spindle noseA 2-5
SpindleSynchronous servo electric spindle
Spindle through apertureΦ56mm
Minimum spindle positioning accuracy (C-axis)0.001° Spindle motor + magnetic ring + disc brake
Dynamic accuracy (C-axis)±0.02° Spindle motor + magnetic ring + disc brake
Spindle rated torque

125Nm

Spindle maximum speed5000rpm
X/Y/Z axis maximum travel250/160/400mm
X/Y/Z axis rapid feed24/16/24m/min
X/Y/Z axis slide rail form30mm linear rail
X/Y/Z axis ball screw diameter/pitchΦ32mm/Pitch10
X/Z axis positioning accuracy0.008/1000mm
X/Z axis repeat positioning accuracy≤0.005mm
Spindle motor11kW
X/Z axis servo motor rated torque11.5Nm/11Nm
Power motor11Nm
Hydraulic station motor1.5kW
Pump motor0.55kW
Air conditioner300W
Turret modelBMT40-12T
Tool changing speed (adjacent knife/opposite edge knife)0.27s/ 0.57s
Square tool≤20mm
Round cutterΦ32mm
Power head (turret) tool specificationsER25（1~16mm）
Maximum speed of the driven toolholder5000rpm
Mandrel inner tapered holeMT#4
Mandrel diameter70mm
Mandrel travel100mm
Spindle control methodHydraulic programmable
Tailstock body travel200mm
Tailstock body movement methodMechanical
Standard controllerSYNTEC 22TB
Water tank capacity300L
Hydraulic tank capacity60L
Voltage/power requirements380V/20kVA
Appearance size (L× W× H)2400×1600×2000mm

Dimensions
